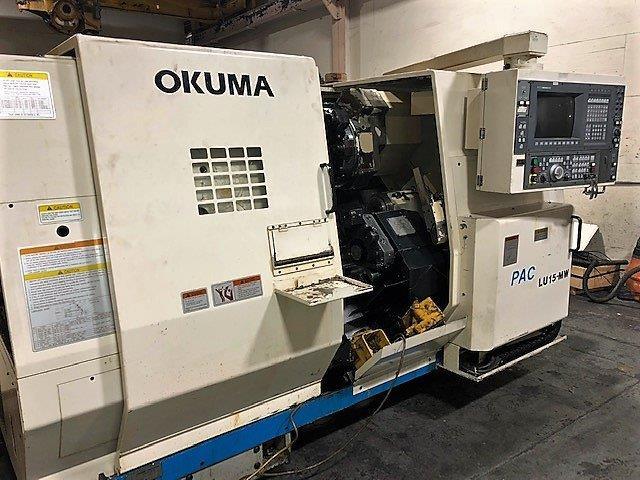

Okuma Model LU-15II/MW 5-Axis CNC Lathe

Okuma LU-15II/MW 5-Axis CNC Lathe, 1997, 20.9" Swing, Sub-Spindle, Upper/Lower Turrets, Okuma 7000L Control w/ IGF, Tooling, LNS Quickload

Request Quote


CNC Control yes
Type of CNC Control OSP 7000L Control with IGF
# Axis 5
Chuck Size 6 inches
Swing 20.87 inches
Turning Diameter 14.17 inches
Center Distance 16.5 inches
Bar Capacity 2.08 inches
Spindle Bore 2.44 inches
X Axis Travel 10.24 inches
Z Axis Travel 25.20 inches
Y Axis (Yes / No) no
Spindle Speed (RPM) 4500
Main Motor 30/20 HP
Sub Spindle Chuck Size 6 inches
Sub Spindle Speed (RPM) 4500
Sub Spindle Motor 10/7.4 HP
Live Milling (Yes / No) yes
Live Milling Speed (RPM) 4500
Live Milling Motor 5/3 HP
Turret Capacity 12
Tailstock (Yes/No) no
Weight 12500 pounds
Power 30 horsepower
Number Of Turrets 2
Live Tooling Max Spindle Speed (RPM) 4500
Spindle Nose A2-6

Equipped With

  • OSP 7000L Control with IGF
  • ATS 3J Hydraulic Collet
  • 6" 3-Jaw Kitagawa Hydraulic Chuck
  • 12 Station Uppper Turret, V12
  • 8 Station Lower Turret, V8
  • (4) Live Tool Holders
  • Chip Conveyor
  • LNS Quickload Bar Feed
