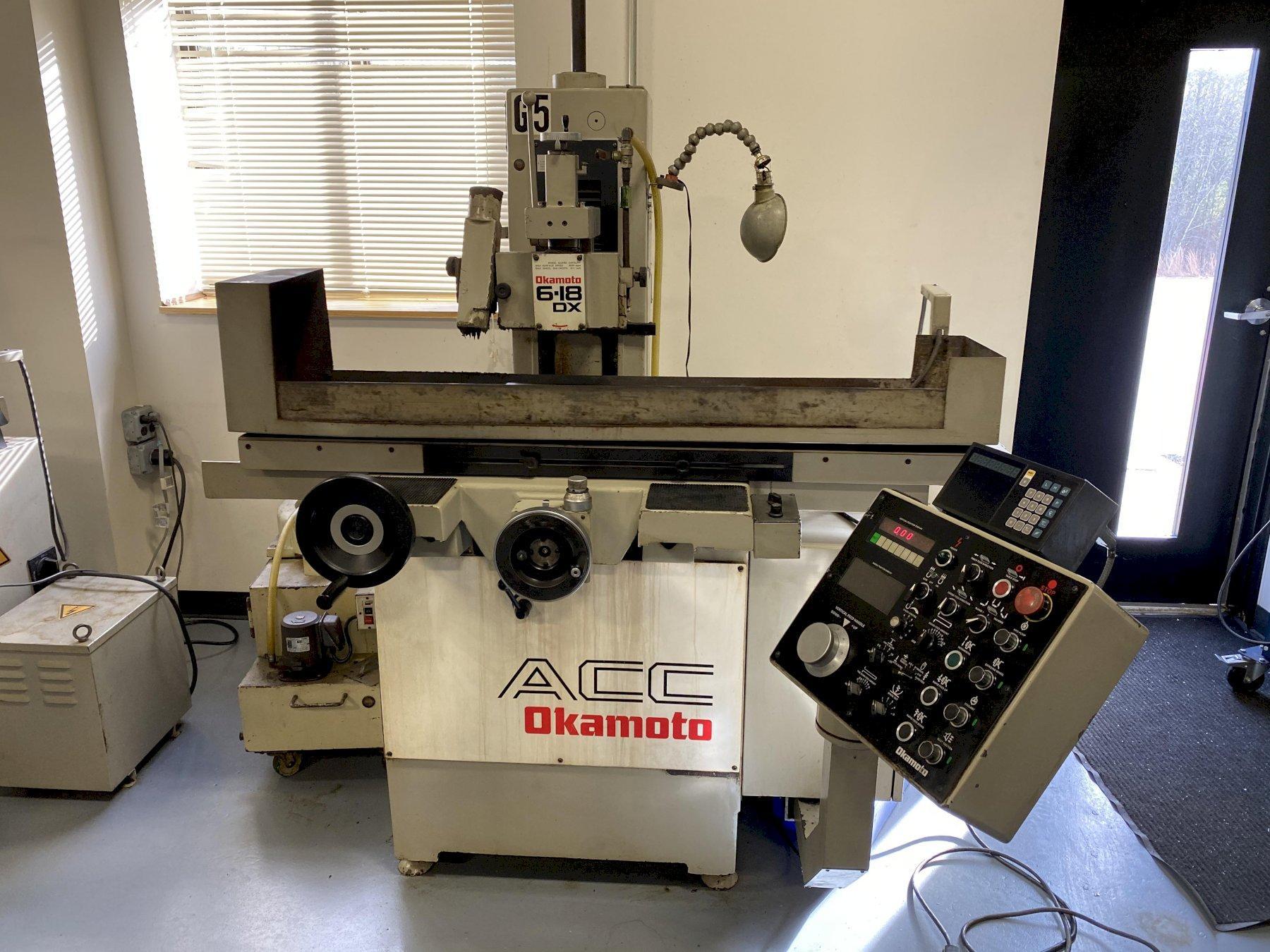

Okamoto ACC-6.18DX3 Surface Grinder

6" X 18" OKAMOTO "HIGH-PRECISION" SURFACE GRINDER WITH "DX" PROGRAMMABLE AUTO INCREMENTAL DOWNFEED

Request Quote

Machine Videos

Specifications

Nominal Grinding Capacity 6" x 18"
Max. Height Under 8" Wheel 11.7 inches
Table Speed, Infinitely Variable Up to 82' FPM
Max. Longitudinal Table Movement, Manual 24 inches
Auto Cross Feed Increment 0.002" to 0.40"
Auto Coninous Crossfeed 4' to 40' FPM
Crossfeed, Manual, Hand Feed Per Rev. 0.25 inches
Graduation of Handwheel 0.0004 inches
Fine Feed Knob for Crossfeed, Grad 0.00002"
Max. Crossfeed, Manual 7 inches
Auto Incremental Downfeed Increments 0.00005" to .0015"
Power Rapid Wheel Positioning Rate 16" IPM
Spindle Motor 2 HP
Wheel Size 8" Dia. x 1" W x 1.25" B
Dim. for Operation 85" x 63" x 70"
Weight 2500 pounds

Equipped With


  • Programmable Electronic Auto Incremental Downfeed:


- Servo Driven Downfeed
- Auto Incremental Downfeed for Both Surface & Plunge Operations
- Dual Rate Auto Downfeed w/ Coarse & Fine Selections
- Digital Display of Vertical Axis on the Console
- Sparkout Passes (0 to 5) w/ Auto Table at Completion of Grind Cycle
-Electronic Handwheel for Manual Vertical Movement w/ each Grad. Equivalent to .00001", .0001" or .001"
-Power Rapid Wheel Positioning


  • Hydraulic Table Traverse & Automatic Crossfeed

  • 6" x 18" O.S. Walker "LBP" Fine-Division Electro-Magnetic Chuck

  • Variable Power Neutofier Control, from the DX Console Control

  • Fine Feed Knob for Crossfeed, .00002" Graduation

  • Manual Over-the-Wheel Dresser w/ Micrometer Adjustment of thee Feed

  • Separate Sony 1-Axis DRO for the Cross Travel Axis

  • Coolant System

  • 2 HP / 230-460 Volt Spindle Motor
