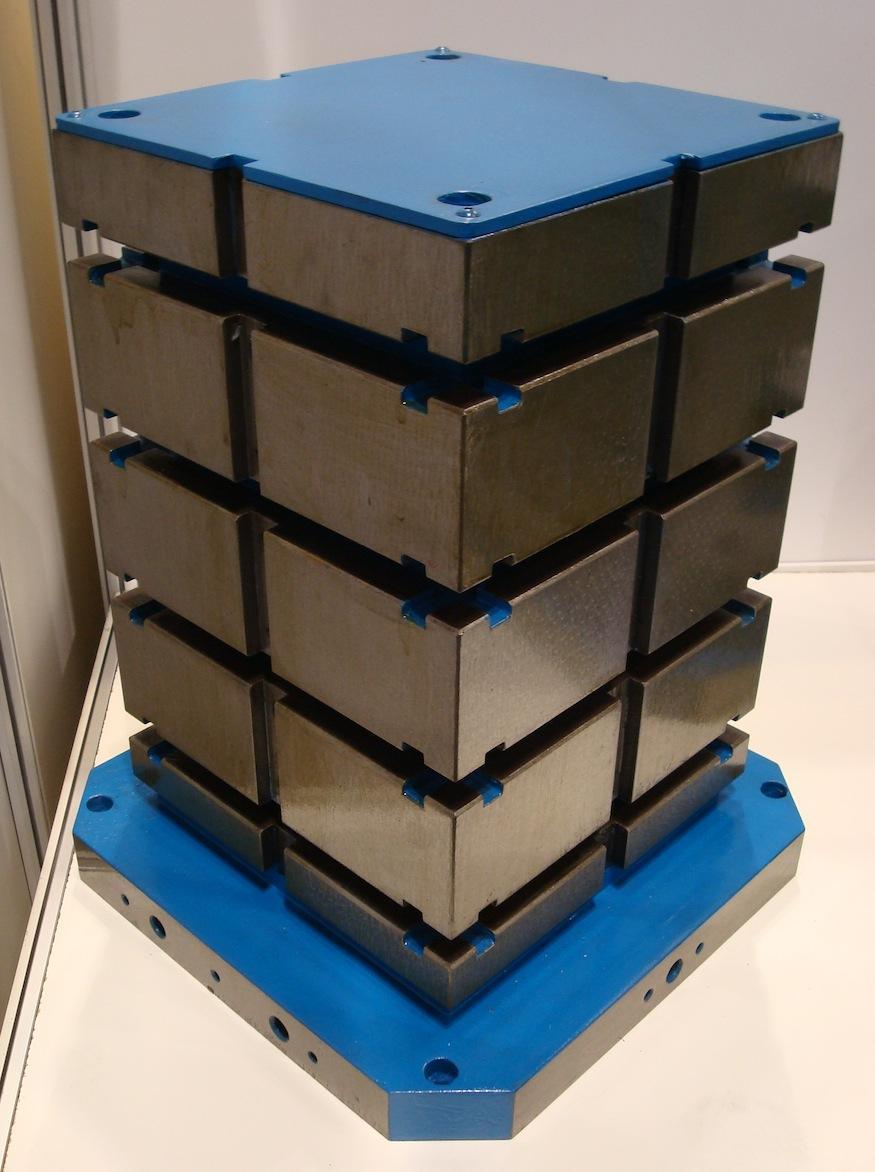

(New) T-Slotted Tooling Block

Specifications

Base Dimensions 15.75" x 15.75" x 1.5" with (4) 5/8" Holes
Block Size 10 7/8" x 10 7/8" x 15 3/4"
T-Slots (4) 16mm with H8 Tolerance
Dimensions 15.75" L x 19.69" H
Weight 430 pounds
Material Cast Iron
Flatness of Working Surface .0008 inches
Squareness of Working Surface .002 inches
Parallelism of Working Surface .002 inches

Equipped With

  • Made From Close Grained Pain Gray Cast Iron
  • Stress Relieved
  • Hand Scrapped Surfaces
  • T-Slots are 18mm and Have H8 Tolerance
  • M16 Tapped Holes
  • Actual Inspection Report Available upon Request
