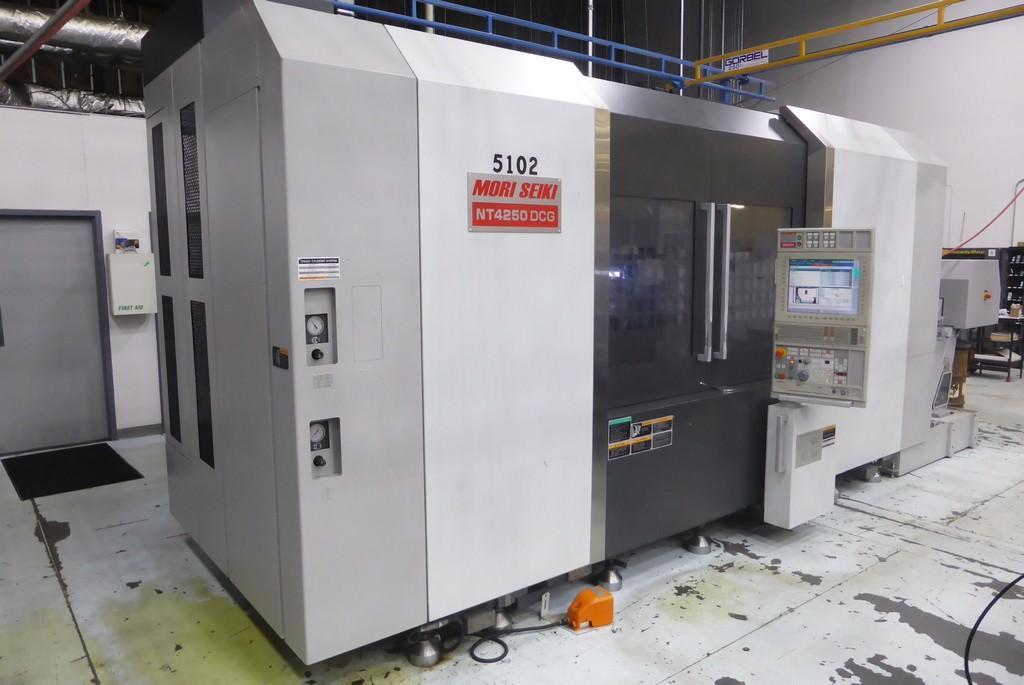

| Type of CNC Control |
MSX-701V |
| Maximum Workpiece Swing |
28.74 inches |
| Maximum Swing Over Cross Slide |
28.7 inches |
| Maximum Distance Between Centers |
69.3 inches |
| Maximum Turning Diameter, Tool Spindle |
25.98 inches |
| Maximum Turning Length |
61.5 inches |
| Bar Capacity |
3.15 inches |
| X-Axis Travel (Milling Spindle) |
29.53 inches |
| Z-Axis Travel (Milling Spindle) |
61.02 inches |
| B-Axis Swivel Range (Milling Spindle) |
+/- 120 Degrees |
| Main Spindle Speed, Maximum |
4,000 RPM |
| Y-Axis Travel (Milling Spindle) |
+/- 8.27" |
| Main Spindle Motor |
35 HP / 30 HP |
| Spindle Nose (Main Spindle) |
JIS A2-8 |
| Main Spindle Through Hole |
3.58 inches |
| Main Spindle, Minimum Indexing Angle |
0.001 Degree |
| Main Spindle Bearing, Inside Diameter |
5.51 inches |
| Minimum B-Axis (Tool Spindle) Indexing Angle |
0.001 Degree |
| Tool Spindle, Maximum RPM |
12,000 RPM |
| Tool Spindle Motor |
25 HP / 15 HP |
| Tool Spindle Taper |
CAPTO C6 |
| Tool Spindle, Inside Diameter of Bearing |
2.76 inches |
| Tool Storage Capacity |
100 Positions |
| Maximum Tool Diameter |
5.51 inches |
| Maximum Tool Diameter with Adjacent Filled |
2.76 inches |
| Maximum Tool Length |
15.75 inches |
| Maximum Tool Weight |
17.6 pounds |
| Rapid Traverse Rate - X&Z Axes |
1,969 IPM |
| Rapid Traverse Rate - Y&A Axes |
1,181 IPM |
| Approximate Floor Space |
192" x 129" |
| Machine Height |
110 inches |
| Approximate Machine Weight |
24600 pounds |
