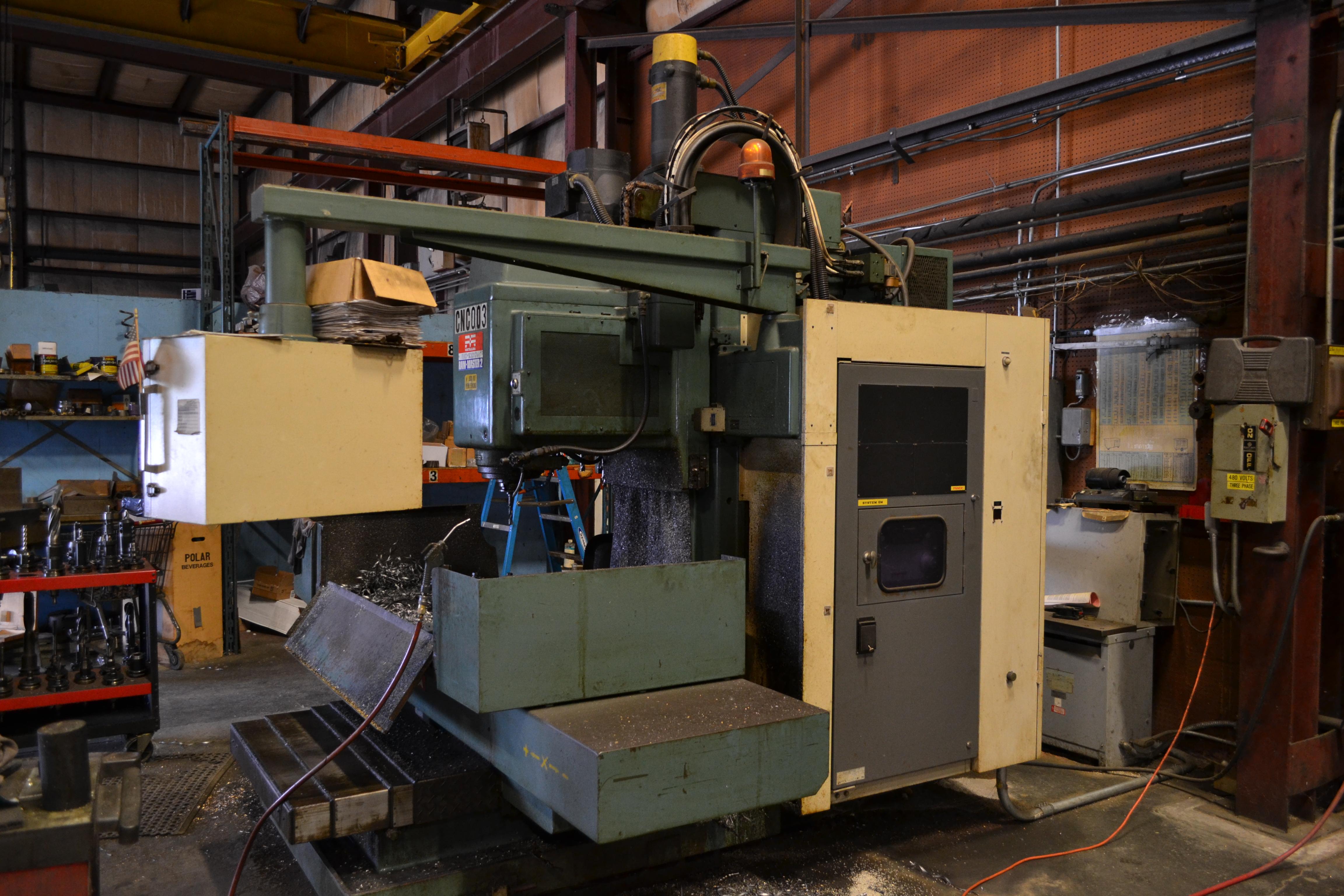

Matsuura MC-1000V-4 Ram Master Vertical Machining Center

Request Quote

Equipped With

  • Fanuc 6M CNC Control
  • Coolant System
  • Auto Lube System
  • 30 Position ATC
  • Approx. 25 Toolholders
  • Manuals Available

Specifications

CNC Control yes
Type of CNC Control Fanuc 6M
# Axis 3
Table Size 55" x 20"
Table Capacity 2200 pounds
X-Axis Travel 41.3 inches
Y-Axis Travel 20 inches
Z-Axis Travel 22 inches
Spindle Speed 20 / 3580 RPM
Spindle Taper BT-45
Main Motor 20 HP Continuous
Tool Changer Capacity 30
X-Axis Feedrate 0.01 / 118 IPM
Y-Axis Feedrate 0.01 / 118 IPM
Z-Axis Feedrate 0.1 / 118 IPM
X-Axis Rapid Traverse Rate 472 IPM
Y-Axis Rapid Traverse Rate 472 IPM
Z-Axis Rapid Traverse Rate 394 IPM
Coolant Thru Spindle yes
Dimensions 165" x 145" x 123"H
Max Distance Spindle To Table Top 28 inches
Max Distance Spindle Nose To Trunnion Center 22.05 inches
Weight 16060 pounds
