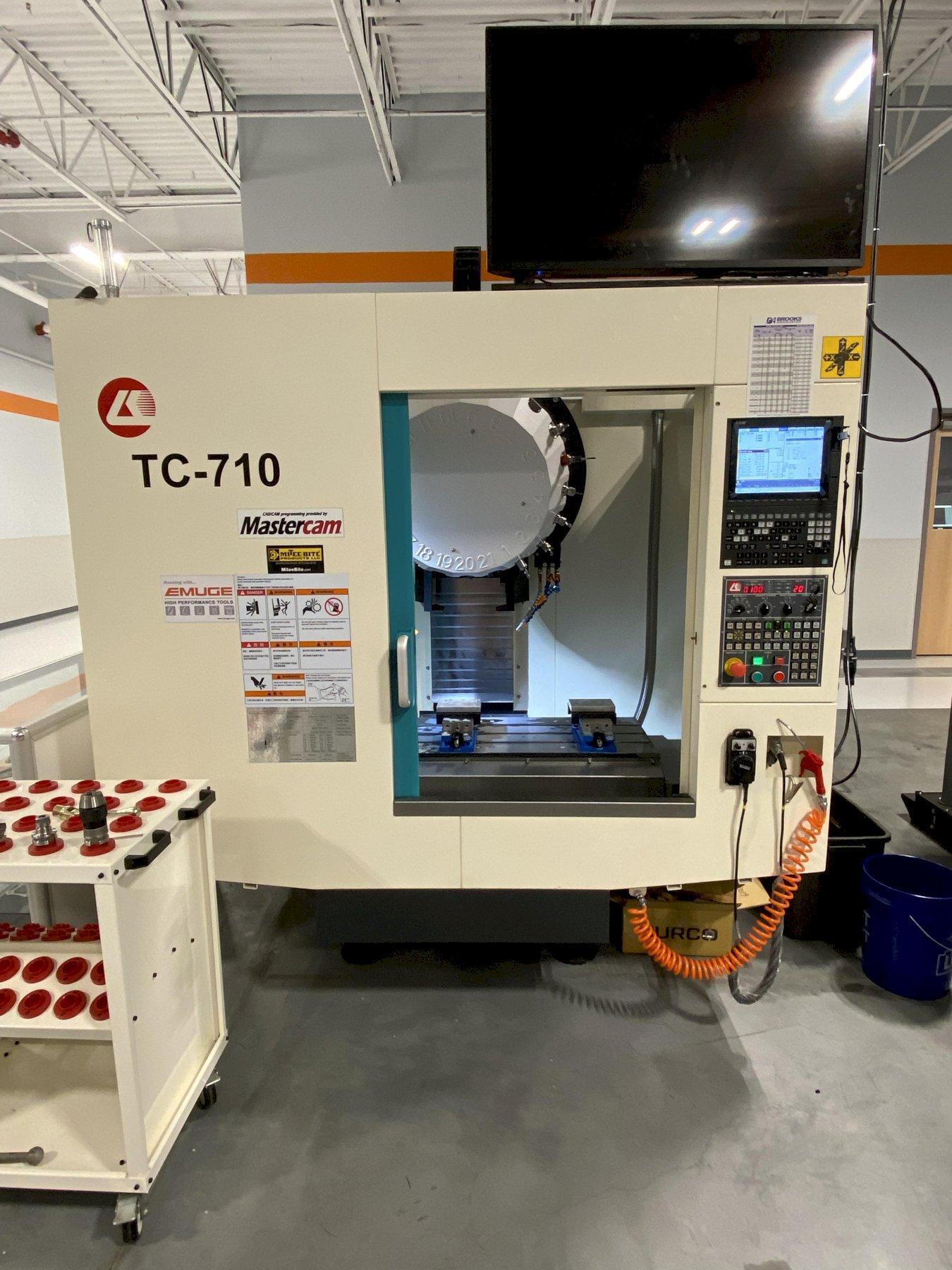

L.K. Machinery Model TC-710 CNC Drill & Tap Center, 2018

L.K. Machinery Model TC-710 CNC Drill & Tap Center, 2018, Mitsubishi M80 CNC Control, 27.95" X-Axis, 16.5" Y-Axis, 13.7" Z-Axis, 21 ATC, BT-30 Taper, 12,000 RPM

Request Quote

Machine Videos

Specifications

X-Axis Travel 27.95 inches
Y-Axis Travel 16.53 inches
Z-Axis Travel 13.77 inches
Distance From Spindle Center to Table 7.08" - 20.86"
Spindle Speed 12,000 RPM Direct Drive Spindle
Spindle Nose BT-30
Spindle Motor 5 HP / 7.5 HP (30 min)
Table Size 33.46" x 16.53"
Maximum Table Capacity 550 ounces
Rapid Traverse Rates 1890 IPM (X / Y / Z Axes)
Cutting Speed Rates 39.3 - 787 IPM
Tool Change Type Turret (Servo)
Tool Change Capacity 21 Positions
Maximum Tool Weight 6.61 ounces
Maximum Tool Length 7.87 inches
Maximum Tool Diameter 5.51 inches
Tool Change Time 2.3 Seconds (Tool to Tool) / 3 Seconds (Chip to Chip)
Approximate Machine Dimensions 120" L x 161" W x 94.5" H
Approximate Machine Weight 6,500 lbs.

Equipped With

  • Demo Machine - Located in Showroom
  • Mitsubishi M80 CNC Control
  • Chip Wash
  • Coolant System
  • Tool Cart
  • (12) BT-30 Toolholders
