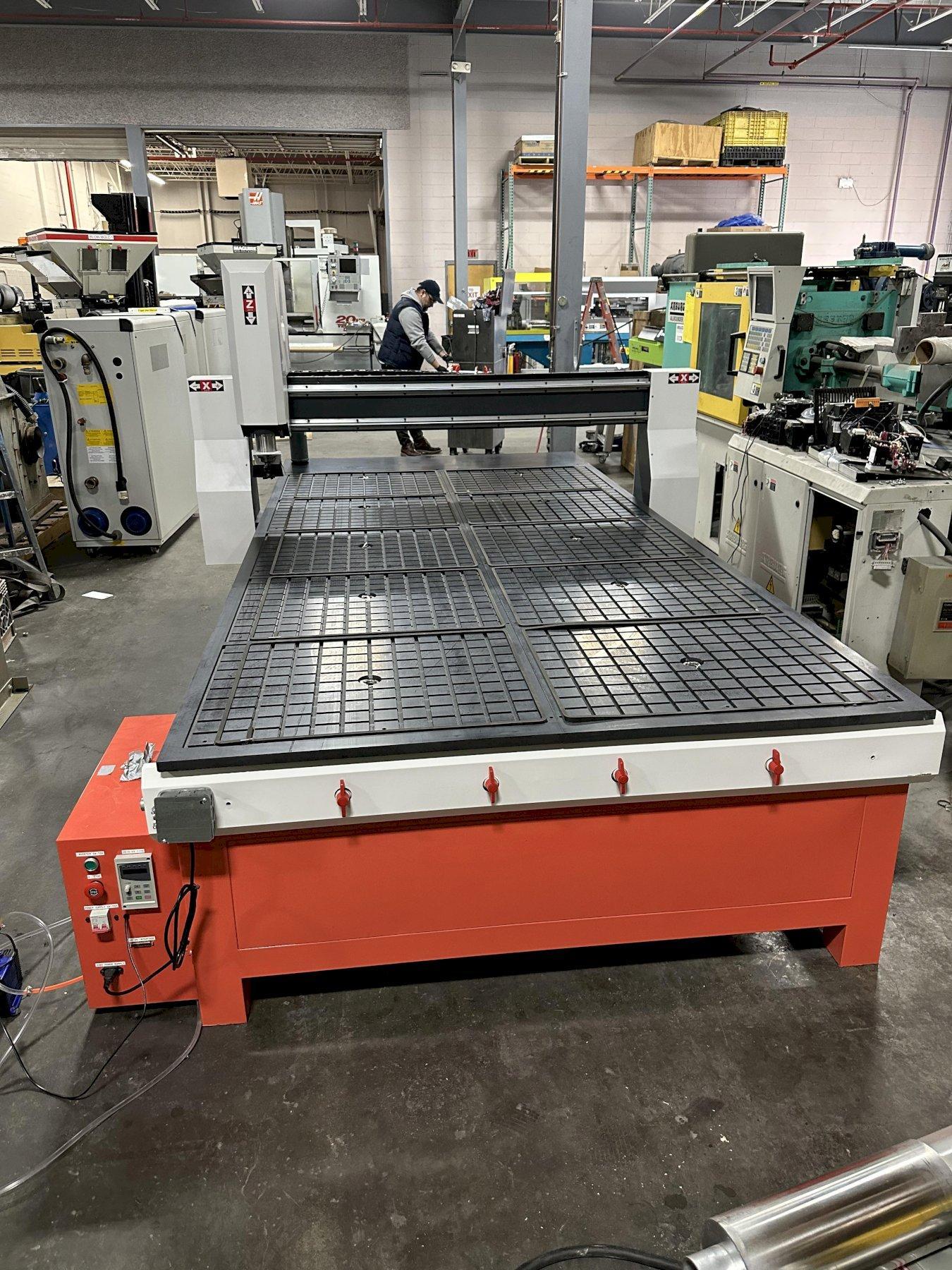

Industrial CNC Model Craftsman 510 CNC Router

2020 Industrial CNC Model Craftsman 510 CNC Router, 5' x 10' x 12" Capacity, 24,000 RPM

Request Quote

Specifications

Table Size 69" x 137"
X, Y, Z Working Area 60" x 120" x 12"
Frae Structure Welded Steel
X, Y Drive Primary Gear with Micro Precision Rack & Pinion
Z Drive Precision Ball Screw
Rapid Speed 0 - 900 IPM
Spindle Speeds 0 - 24,000 RPM
Working Voltage AC 220V
Approximate Dimensions (w/o Vacuum Pump) 140" L x 84" W x 66" H
Approximate Weight 2,500 lbs.

Equipped With

  • Windows Based PC with CAD/CAM Software
  • Vacuum Hold Down System (Quad Control, 8 Zone, with Regenerative Pump)
  • Variable Speed Liquid Cooled Spindle
  • Dust Collection Attachment
  • Welded Steel Frame
  • Posi-Trac Dual Drive System
  • Proflex Cable Management
  • Mechanical Limit Switches
  • 25mm Linear Rails
