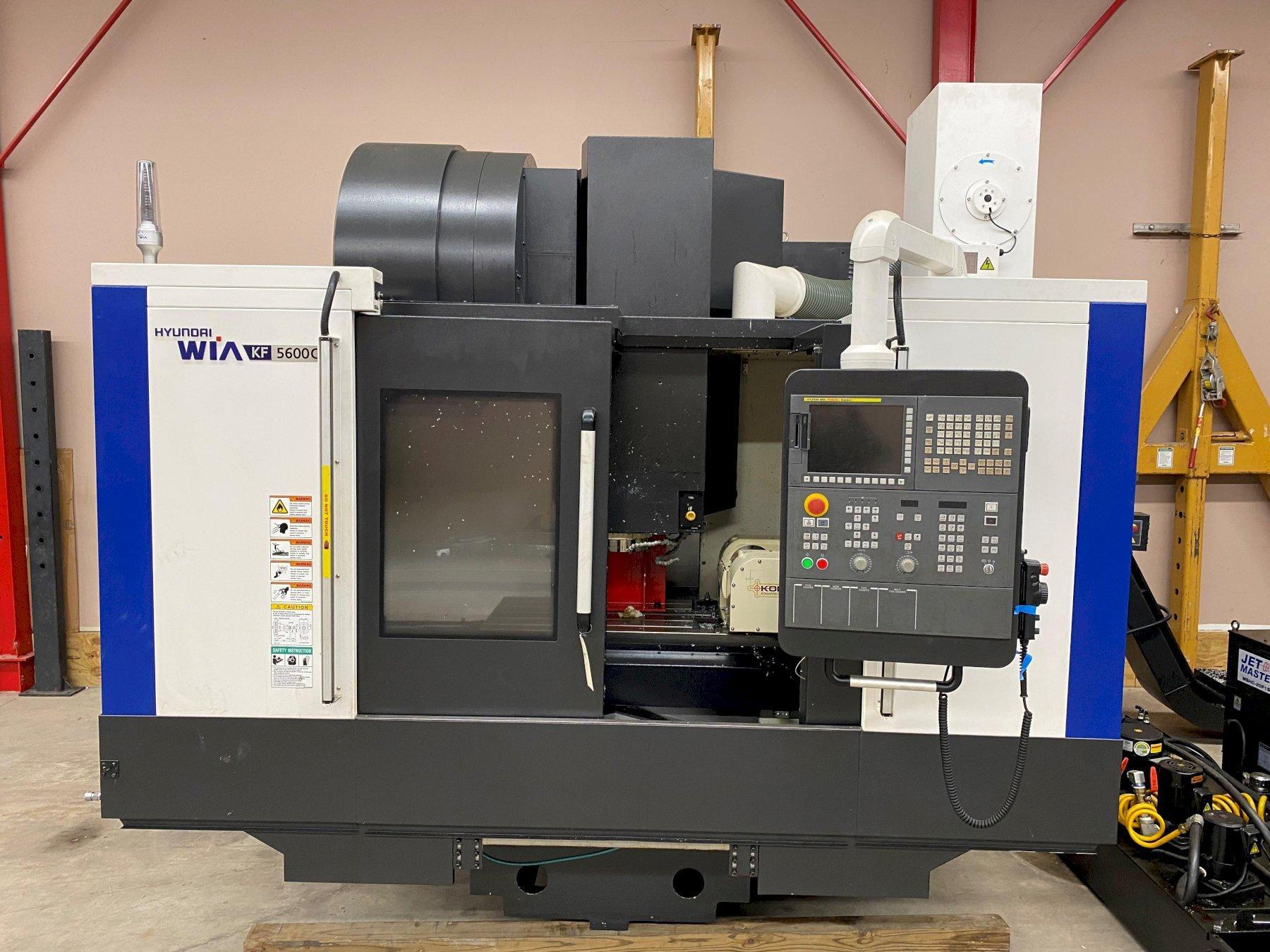

Hyundai-Wia Model KF5600C Vertical Machining Center, Mfg. 2016

Hyundai-Wia 5-Axis Model KF-5600C Vertical Machining Center, 2016, 49.2" x 22" Table, 43.3" X, 22" Y, 25" Z, 12,000 RPM, 30 ATC, Big Plus Cat-40, Fanuc 32iB Control, Koma TN-161 Trunnion Table, Gauging

Request Quote

Specifications

Table Size 49.2" x 22"
X-Axis Travel 43.3 inches
Y-Axis Travel 22 inches
Z-Axis Travel 25 inches
Spindle Power 22 HP
Spindle Taper Big Plus CAT 40, Dual Contact
Spindle Speeds 0 - 12000 RPM
Spindle Center to Column 26.8 inches
Spindle Nose to Table 5.9" - 30.9"
Max. Workpiece Weight 2205 pounds
Approximate Machine Dimensions 111" x 86" x 124"
Approx. Weight 16645 pounds

Equipped With

  • Fanuc 32i-B CNC Control
  • Thru Spindle Coolant
  • Koma Trunnion Style Rotary Table, Model TN-161
  • 30 Position ATC
  • Chip Conveyor
  • Marposs Gauging
  • Auto Door
  • Mist Collector
