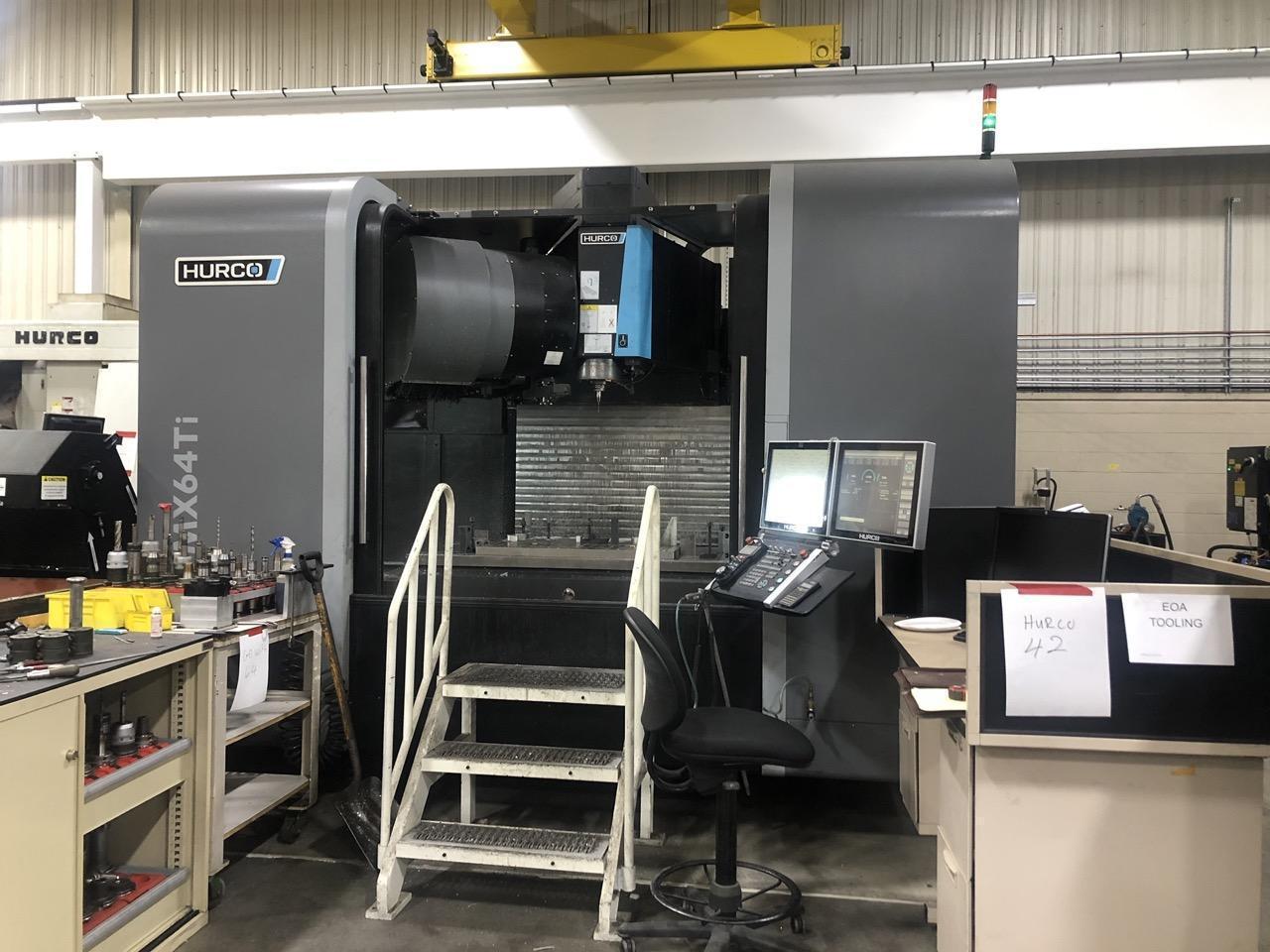

Hurco Model VMX-64Ti CNC Vertical Machining Center

Hurco VMX-64Ti 3-Axis Vertical Machining Center, Mfg. 2017, 24HP, 12000 RPM, 64" X-Axis, 34" Y-Axis, 30" Z-Axis

Request Quote

Machine Videos

Specifications

Table Size 66" x 35"
Table Capacity 6000 pounds
X-Axis Travel 64 inches
Y-Axis Travel 34 inches
Z-Axis Travel 30 inches
X-Axis Rapid Traverse Rate 709 IPM
Y-Axis Rapid Traverse Rate 709 IPM
Z-Axis Rapid Traverse Rate 530 IPM
Spindle Taper CAT-50
Spindle Speed 12000 RPM
Spindle Nose to Table 6 inches
Tool Changer Capacity 40
Max. Tool Diameter 3.1 inches
Max. Tool Length 11.8 inches
Max. Tool Weight 15.4 pounds
Main Motor 24 HP
Torque, Up To 176 ft-lbs @ 720 rpm
Weight 32187 pounds
Dimensions 249.5" x 175.5" x 128.3" H

Equipped With


  • Hurco MAX5 CNC Control

  • WINMAX Control Software

  • AC Brushless Servos

  • LCD Remote Jog

  • Automatic Central Lubrication System

  • Automatic Swing-Arm Tool Changer

  • LED Work Light

  • Barnes Filtration Unit / Coolant Tank / Pump

  • Chiller
