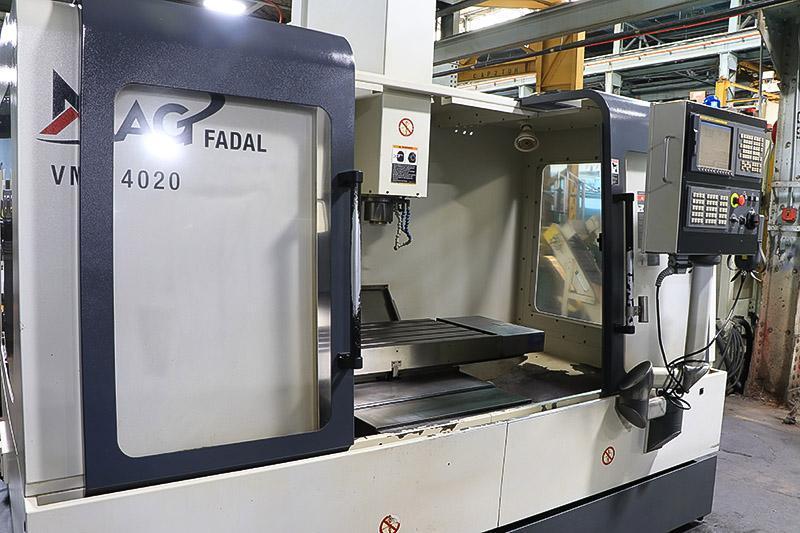

Fadal VMC-4020D3HT

Specifications

Table Working Surface 20" x 48"
Floor to Table Surface 32 inches
T-Slots (# x Width x Span) 5 x .709" x 3.75"
Max. Weight on Table 3641 pounds
Table Travel, X-Axis (Longitudinal) 40 inches
Table Travel, Y-Axis (Cross) 20 inches
Min./Max. Distance, Spindle Nose to Table 4" / 24"
Spindle Taper CAT 40
Number of Tools 30
Spindle Speeds, Two Geared Ranges 10 - 10000 RPM
Spindle Center to Column Ways 20 inches
Spindle Tourque 220 ft./lbs.
Cutting Feed Rates, X/Y/Z Axes 0.01 to 400 IPM
Rapid Feed Rate, X/Y Axes 900 IPM
Rapid Feed Rate, Z-Axis 600 IPM
Max. Tool Diameter 3 inches
Max. Tool Dia. w/out Adjacent Tools 6 inches
Max. Tool Length 15 inches
Max. Tool Weight 15 pounds
Approx. Dimensions 117" x 94" x 100"
Approx. Weight 11000 pounds

Equipped With

  • Fanuc Model 18i-MB5 CNC Control
  • 10000 RPM High Torque Spindle Option
  • Automatis Tool Changer (30) Stations
  • Rigid Tapping
  • Box Ways on all Axes
  • AC Servo Motors on all Axes
  • Bijur Automatic Lubrication System
  • External Coolant Pump and Tank
  • 22.5 HP AC Drive Motor
