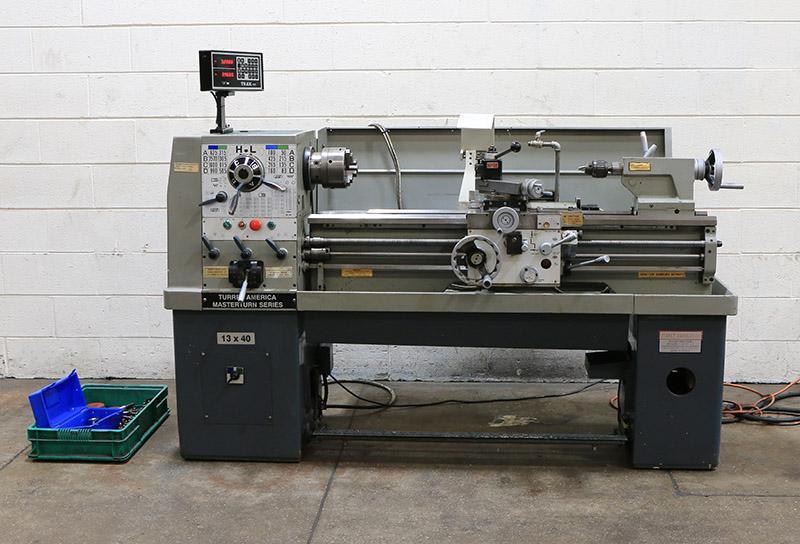

American Turnmaster 1340G Engine Lathe

13"/20" - 40" American Turnmaster Gap Bed Engine Lathe, MFG. 2002, Model: 1340G

Request Quote

Specifications

Swing Over Bed 13.4 inches
Swing Over Cross Slide 8.3 inches
Swing in Removeable Gap 20 inches
Distance Between Centers 40 inches
Width of Bed 9.1 inches
Hole Thru Spindle 1.6 inches
Spindle Nose, Camlock Size D1 - 4"
Spindle Speeds (16) 50 - 2570 RPM
Tailstock Spindle Taper #3 Morse
Tailstock Spindle Travel 4.4 inches
Tailstock Spindle Dia. 2 inches
Longitudinal Feeds .0015 - .067 IPR
Cross Feeds .001 - .034 IPR
Threads, Inch (45) 2 - 72 TPI
Threads, Metric (39) .2 - 14 mm pounds

Equipped With


  • Quick Change Universal Gearbox Provides Wide Range of Inch/Metric Feeds & Threads

  • Removeable Gap Block

  • Trak 2-Axis Digital Readout

  • 3-Jaw Chuck

  • Aloris Model: BXA Quick Change Toolpost & Holders

  • Threading Dial

  • Drill Chuck for Tailstock

  • Live Center for Tailstock

  • Self Contained Coolant System w/Full-Length Rear Splash Guard

  • Induction Hardened Bedways

  • 5 HP Spindle Drive Motor
