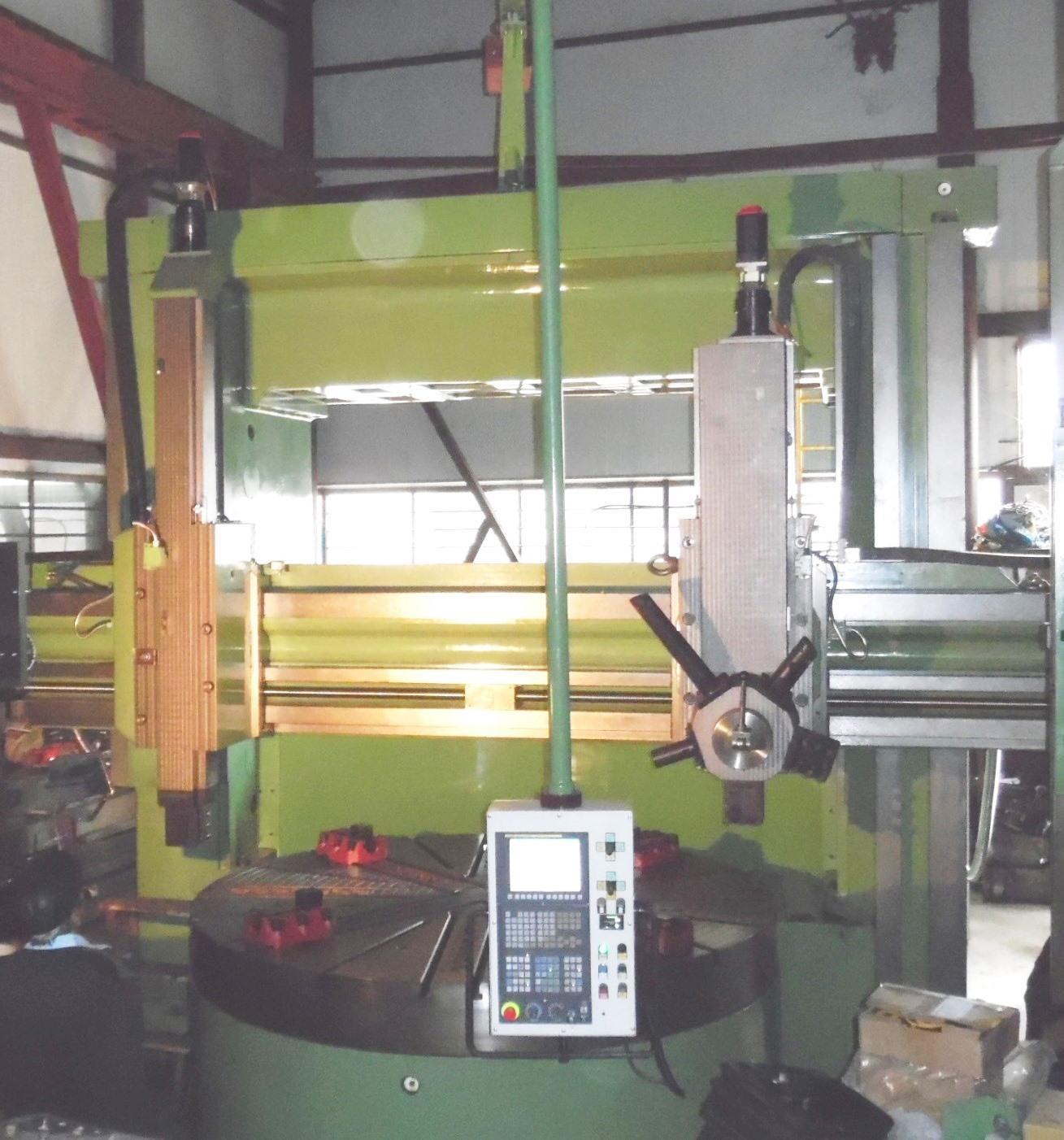

Titan Model SC -25/33 CNC Vertical Boring Mill, U-4091

Titan Model SC -25/33 CNC Vertical Boring Mill, 98" Table, 128" Swing, 71" Under Rail, Fanuc 0iD Control, Left Hand Ram, Right Hand Turret, Factory Rebuilt/Retrofitted

Request Quote

Specifications

Table Diameter 98 inches
Maximum Swing 128 inches
Power 75 horsepower
Max. Workplace Height 71 inches
Max. Workplace Weight 40000 pounds
Right Turret Vertical Travel 30 inches
Left Ram Vertical Travel 39 inches
CNC Control yes
Type of CNC Control Fanuc 0iD CNC Control
Dimensions 209"L x 212"W x 220"H
Weight 106000 pounds
Table Speed 1 to 92 RPM

Equipped With

  • Fanuc 0iD CNC Control
  • Fanuc Drive Motors
  • 4 Table Jaws
  • Price Includes Delivery to NY Port / Duty Paid / Installation
  • Machine Requires 30” Pit - Crossed Roller Bearing (No Pit) Available at Extra Cost
