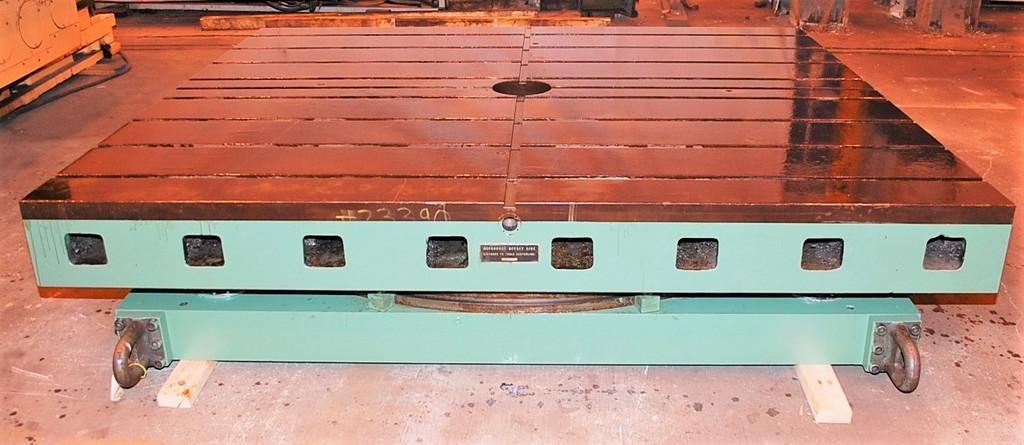

84” x 96” Giddings & Lewis Hydrostatic Rotary Table Model: Hydrostatic Mfg: 1974 S/N: .040-1485-74

Specifications

Weight 22500 pounds
Table Size-X 84 inches
Table Size-Y 96 inches
CNC Control no
Dimensions 78" x 84"
Weight Capacity 50000 pounds
Shot Pin Locations (Degrees) 90/180/270/360
Table Base Dimensions 78" x 84"
Overall Table Height 19 inches
Number of T-Slots 8
Width of T-Slots (Top) 1 inches
Width of T-Slots (Bottom) 1.75 inches
Depth of T-Slots (Overall) 2 inches
Distance Between T-Slot Centers 10 inches
Center Keyway Width 1 inches

Equipped With

  • Air Clamp
  • Hydrostatic Lift
  • (4) Positive Stop, Shot Pins
  • 360 Degree Scale with 1/2 Degree Increments
  • Fixture Locating Keyway
  • Centerbore in Table Platen
