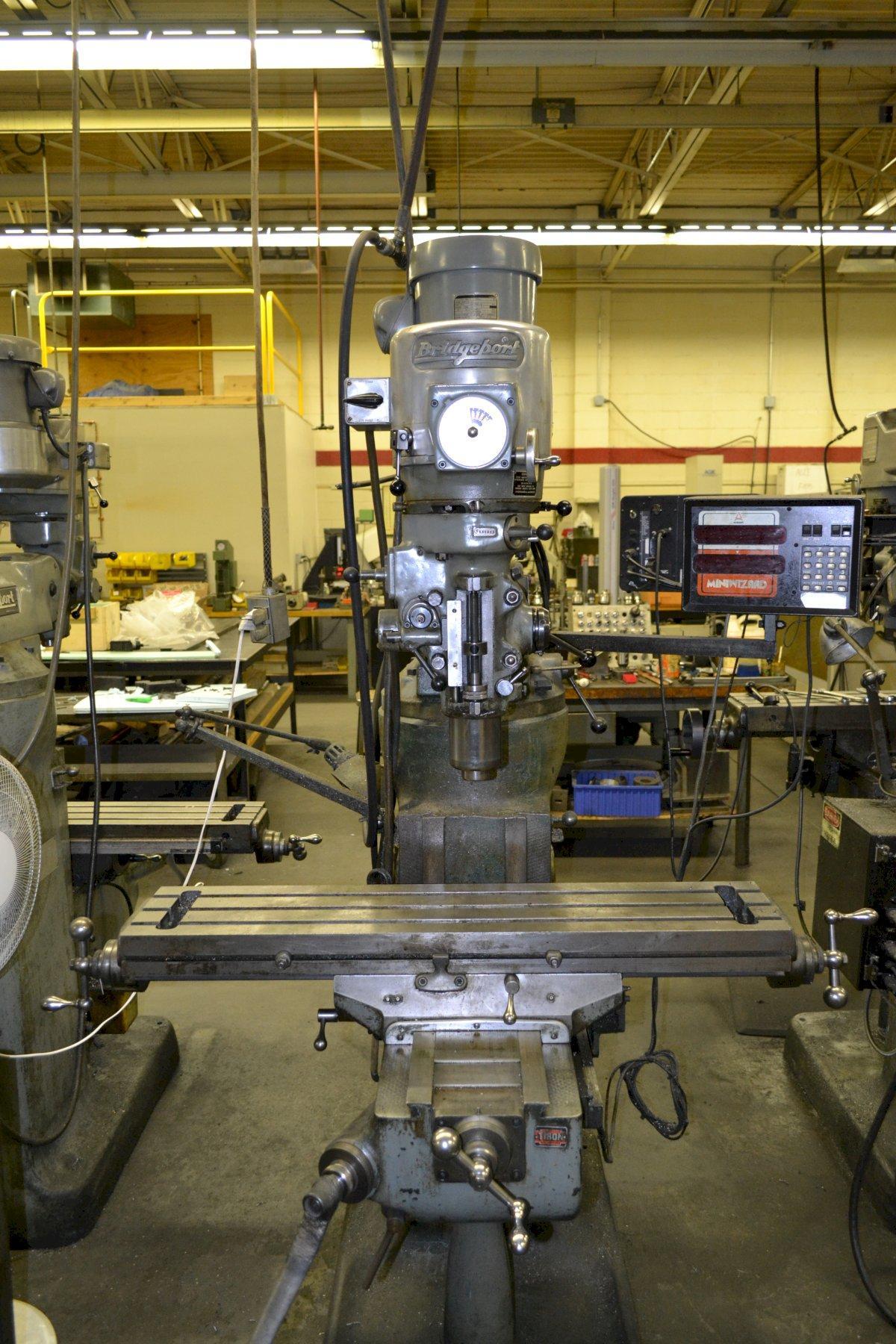

Bridgeport Vertical Mill

Specifications

Table-W 4 inches
Table-L 42 inches
Travel-Long 30 inches
Travel-Cross 12 inches
Vertical, Knee 16 inches
Quill (Z) 5 inches
Ram Travel 12 inches
Power 1.5 horsepower
Taper R8
Max./Min. Distance, Spindle Nose to Table 18.5 in. / 2.5 in.
Max./Min. Distance, Centerline of Spindle to Face of Column 18.75 in. / 6.75 in.
Head Tilt (Left / Right) 90 Deg.
Head Tilt (Front / Rear) Each Way 45 Deg.
Power Quill Feeds (3) .0015 / .003 / .006
Variable Spindle Feeds (2 Ranges) 60 - 500 RPM
Maximum Collet Capacity .75 inches
CNC Control no

Equipped With

  • Acu-Rite Mini Wizard 2-Axis DRO
  • Work LIght
