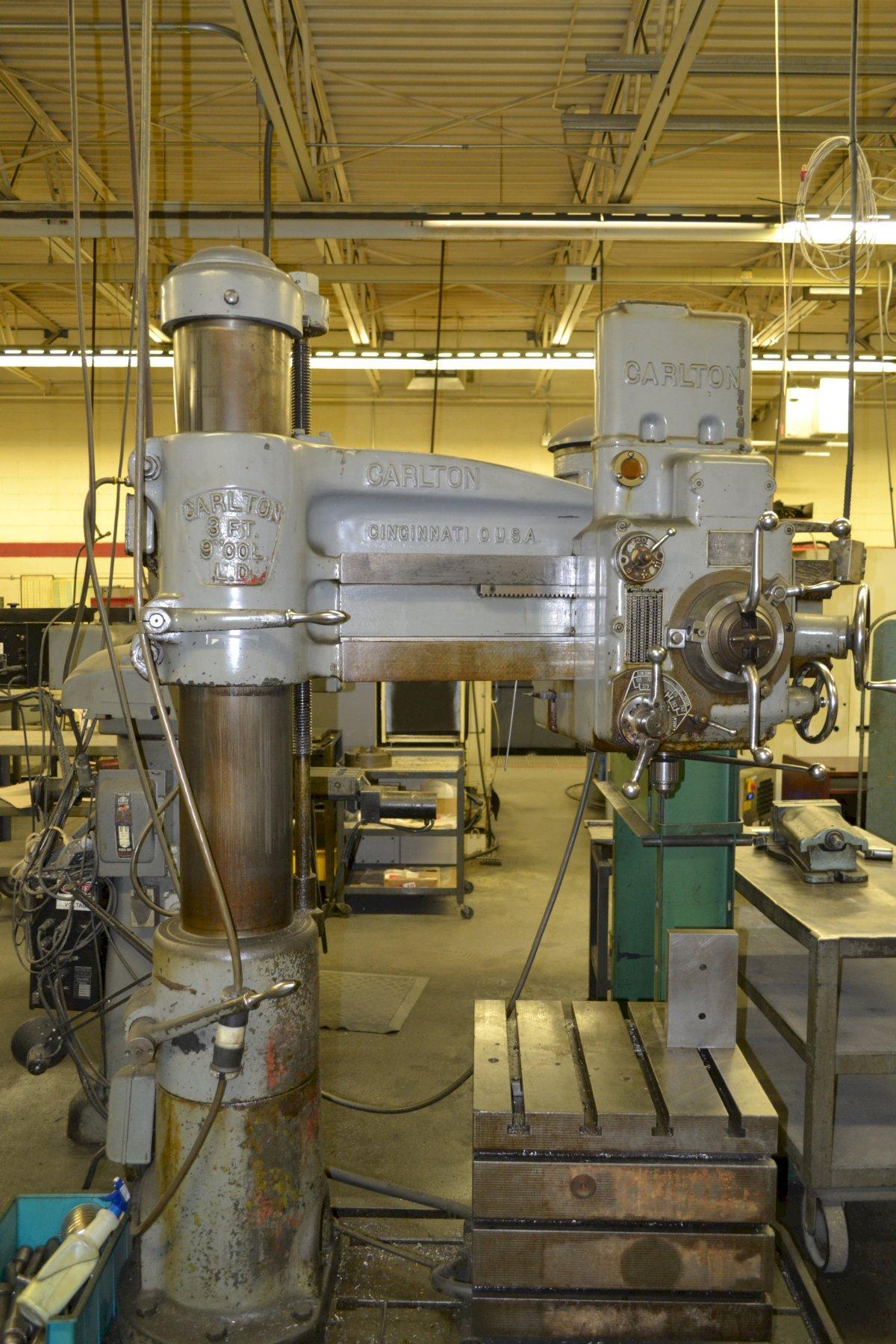

Carlton Model 0A Radial Drill

Specifications

Arm Length 3 feet
Column Dia. 9 inches
Power 3 horsepower
RPM 2000
Feeds (6) .004 - .025
Face of Column to Center of Spindle 3' Max / 9" Min.
Maximum Spindle Radius 3.7 feet
Minimum Spindle Radius 16 inches
Maximum Spindle to Base 4.5 feet
Minimum Spindle to Base 14 inches
Vertical Travel of Spindle in Head 12 inches
Morse Taper in Spindle No. 4
Spindle Diameter 2.5 inches
Traverse of Arm on Column 2.3 feet
Traverse of Head on Arm 2.3 feet
Drills to Center of Circle 6 feet
Swing of Arm 52 inches
Weight 5500 ounces

Equipped With

  • 3 HP Drive Motor
  • Power Elevation
  • Manual Column Clamp
  • 21" x 21" Tilting Box Table with T-Slots
  • Coolant
